Insulating Boots

Specifications

Parameter	Value
Suitable for indoor applications upto 17.5 kV system
Improves air clearances in confined boxes
Mounted on single or three core applications
Kit No:	Kit Contents
CAB-RRL-KIT (for three core cable)	Elastomeric insulating boots, Silicon grease, Installation instruction
E-CAB-KIT (for three core cable)	Elastomeric insulating boots, Silicon grease, Installation instruction

Technical Information

Parameter	Value
Maximum system voltage	17.5 kV
Basic impulse level	75 / 95 kV
AC high Voltage	36kV for 1 minute
Bushing diameter	46 – 70 mm
Bushing types	DIN, CEN ELEC, ANSI 400/630A
Cable cross section	35 – 400 mm²

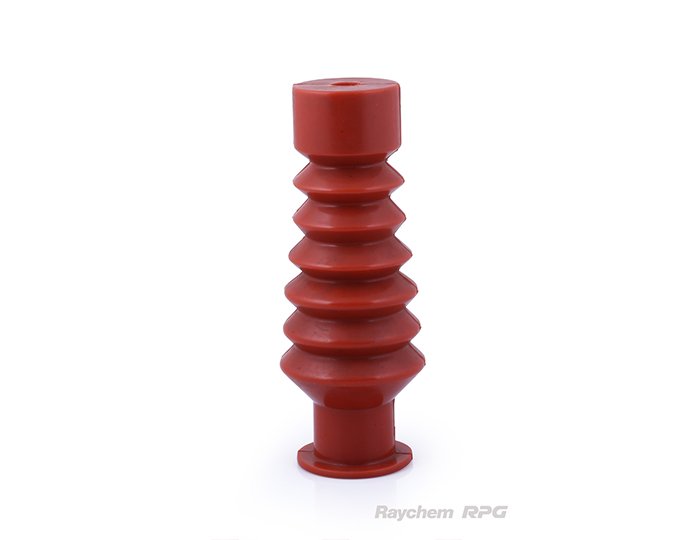

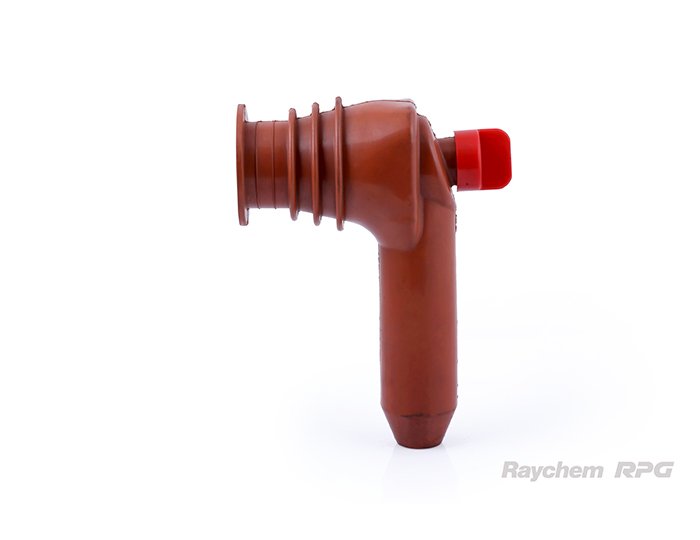

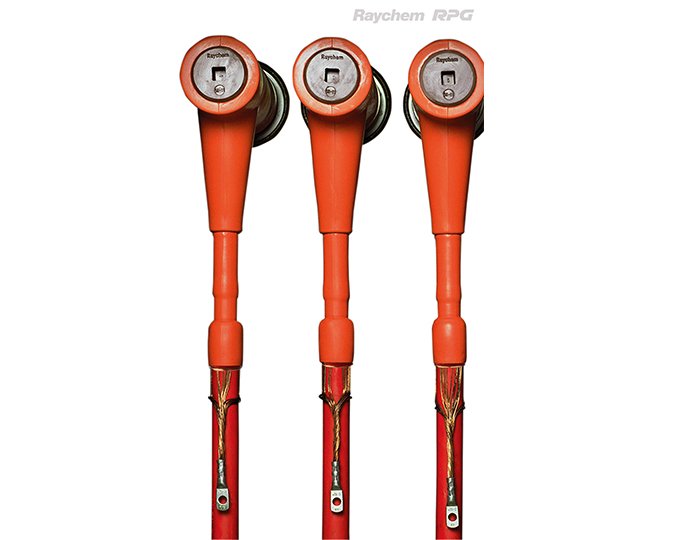

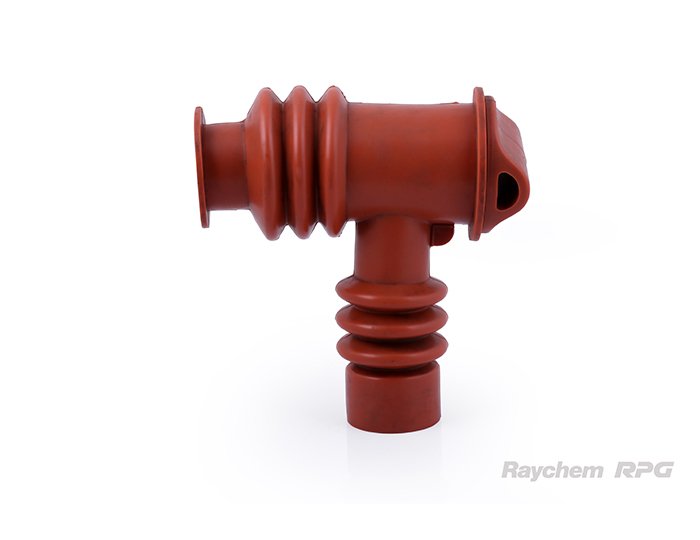

Medium Voltage Insulating Boots. Cold applied unscreened elastomeric insulating boots (in Silicon or EPDM) are moulded parts, fitted over the connection between a cable lug and inline or right-angled equipment bushing, to improve phase-to-phase and phase-to-ground insulation. They are used in switchgear and transformer cable boxes where the air clearances are insufficient for normal operation or protect against flashover due to rodents or high humidity. The non-tracking elastomeric housing has excellent erosion resistance, dielectric properties, and environmental resistance, giving superb performance in areas of high humidity and electrical stresses.
