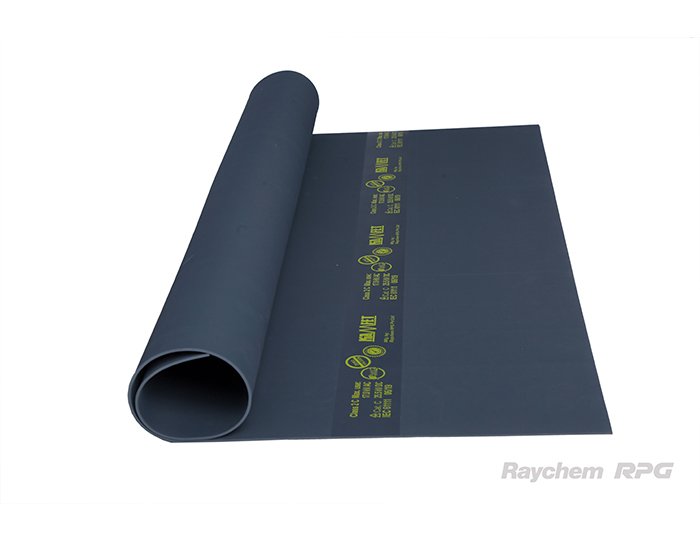

IEC & AS/NZS Standard Insulating Mats

Category: Tag:

Specifications

Paramete Value
Colour marking in accordance with colour coding of Standard

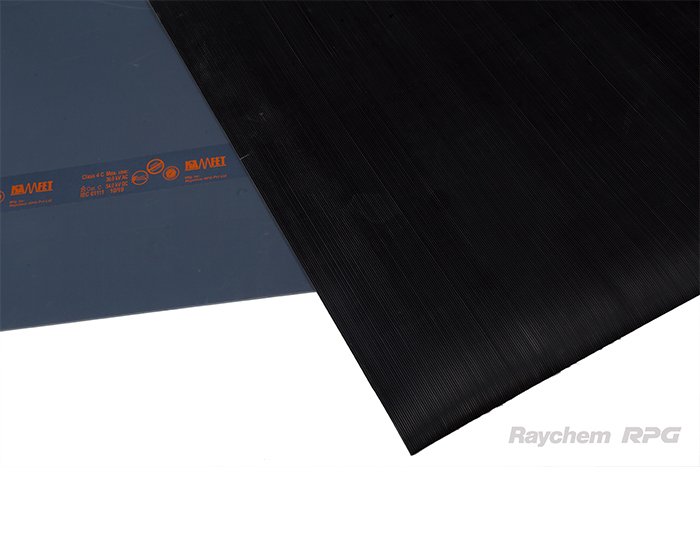

Mats in Dark Grey and Black colours
Standard widths 600mm, 1000mm, 1200mm
Standard lengths 1000mm, 5000mm, 10000mm; customized lengths on request
Conform to following tests as per Standard
  • Puncture resistance
  • Dielectric
  • Ageing
  • Flame retardance
  • Acid resistance
  • Oil resistance



Technical Information

Classification Max Working Voltage Proof Test Voltage Withstand Voltage
Class 0 1,000 AC 5,000 AC 10,000 AC
Class 1 7,500 AC 10,000 AC 20,000 AC
Class 2 17,000 AC 20,000 AC 30,000 AC
Class 3 26,500 AC 30,000 AC 40,000 AC
Class 4 36,000 AC 40,000 AC 50,000 AC

High quality Insulating mats conforming to Standards IEC 61111 & AS/NZS IEC6111:2020

  • Make in India
  • High quality rubber provides complete protection against electric shock due to earth faults
  • Suitable for applications and placed in front of electrical panels, switchgears and high voltage equipment for safe working environment for operators/users
  • Choice of Class must be determined according to the maximal nominal voltage of network
  • Zero Halogen
  • REACH, ROHS2 compliant
  • Anti-skid fabric impression/corrugation material
