Air Terminal Rods – Passive System

Category: Tag:

Specifications

Sr.No.  Product Code  Dia. Of Rod (mm)  Thread Size  Length
1 RAR -01 15 M16 300
2 RAR -02 15 M16 500
3 RAR -03 15 M16 1000
4 RAR -04 15 M16 1500
5 RAR -05 15 M16 2000
6 RAR -06 19 M20 300
7 RAR -07 19 M20 500
8 RAR -08 19 M20 1000
9 RAR -09 19 M20 1500
10 RAR -10 19 M20 2000

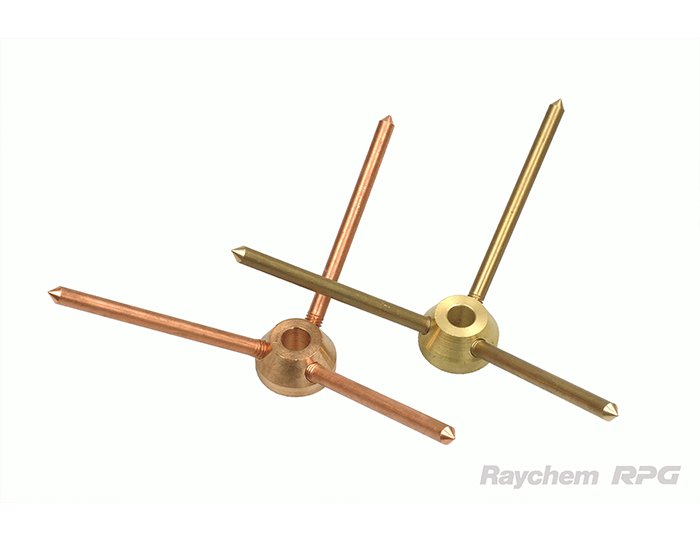

Multipoint
Product Code Copper Alloy  Product Name
RMP-01 Multipoint Set for 15mm dia. rod
RMP-02 Multipoint Set for 19mm dia. rod



Technical Information

Parameter
Air terminal base is manufactured from high quality copper and aluminium alloys
Copper alloy connectors do not contain more than 15% zinc
Bolts withstand torque of at least 20 Nm. 4; current of 100kA
Air terminal bases available in different material and sizes

Conventional Air Terminal Rod used on highest point of elevated structures to captures maximum lightening strikes

  • Make in India
  • Provides an electrical connection between air terminal rod and down conductor (copper tape) which interfaces with ground or earth through an electrode, engineered to protect structures from lightning strikes
  • Simplified design makes simple installation
  • Air terminal base is mounted on buildings, telecommunication towers and other high structures
