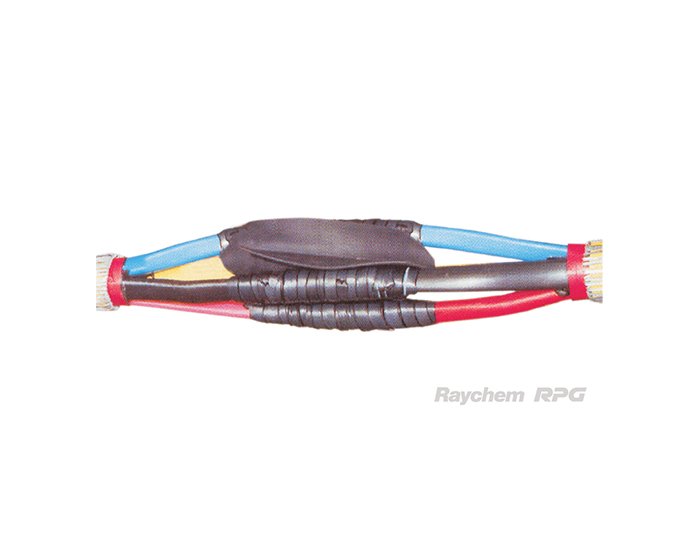

Cold Applied Low Voltage Joints - Image 2

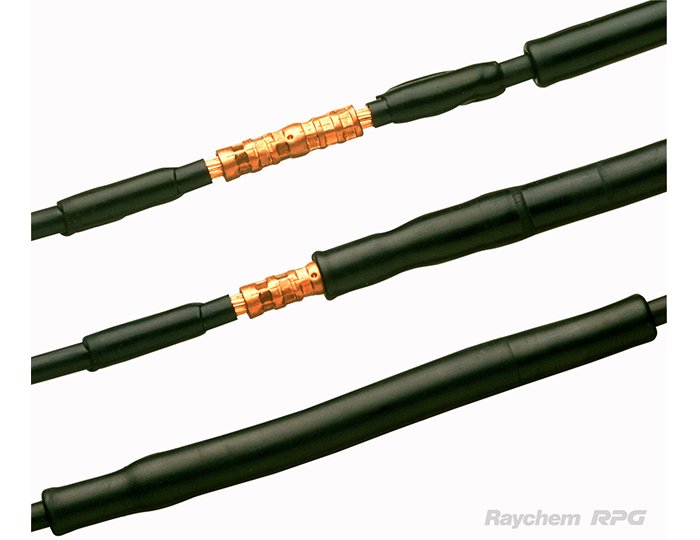

Cold Applied Low Voltage Joints

Category: Raychem RPG Tag: Cold Applied Low Voltage Joints

Specifications

Parameter
Tool Free installation
UV and Fungi resistant
Suitable for single and multi-core applications
Immediate energisation of joint after installation
Unlimited shelf life

Technical Information

Sr. No.	Particulars	1.1 KV
1.	Rated Voltage of Cable accessories	1.1 kV
2.	Applicable Standards	IS: 13573- Part 1, 2011 / EN50393
3.	Heating Cycle Test in Air	Total cycle = 63 nos.
	a. Each cycle heating duration	5 hours (maintain 2 hrs min as steady state)
	b. Temperature	PVC – 75°C, XLPE – 95°C.
	c. Cooling Duration	3 hours
4.	Heating Cycle Test in Water	Total cycle = 63 nos.
	a. Each cycle heating duration	5 hours (maintain 2 hrs min as steady state)
	b. Temperature	PVC – 75°C, XLPE – 95°C.
	c. Cooling Duration	3 hours
5.	Insulation Resistance Test (Water)	50 MΩ (Min)
	Insulation Resistance Test (Air)	50 MΩ (Min)
6.	Impact Test for Straight Joints (armoured cables)	No damage
7.	A.C. Voltage Withstand (water)	4 KV for 1 minute
8.	A.C. Voltage Withstand (Air)	4 KV for 1 minute
9.	Thermal Short Circuit	As per cable cross section and material of conductor
10.	Tubing Material	Cold Applied (Roll-On Sleeve) Type
11.	Di-electric strength of insulating material	10 kV/mm min

Description
Reviews (0)

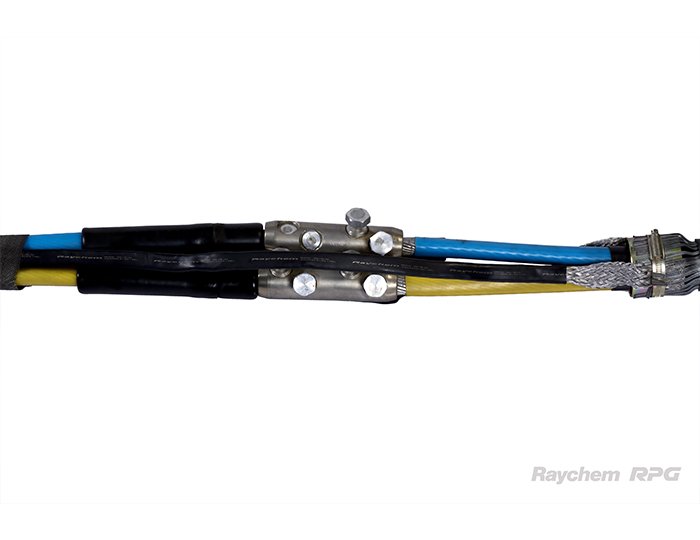

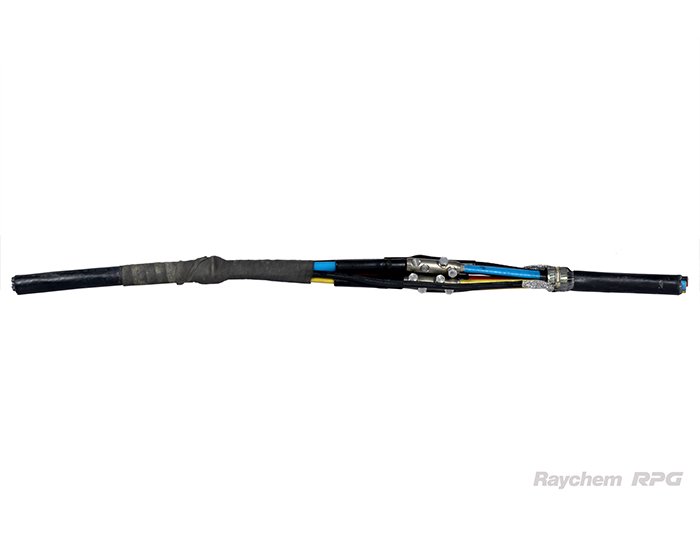

1.1kV Cold Applied Rayvolve Roll-on Joint. Rayvolve RVS jointing is the “roll-on” way to insulate and seal cable connections up to 1.1kV. The gripping force, of a specially formulated EPDM elastomer, combined with high-performance sealant forms a reliable and water-resistant insulating sleeve. The product is UL listed and CSA certified for direct burial applications.
